[GitHub] carbondata pull request #2412: [CARBONDATA-2656] Presto vector stream reader...

classic Classic list List threaded Threaded
67 messages Options
1234
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata pull request #2412: [CARBONDATA-2656] Presto vector stream reader...

qiuchenjian-2
Github user sv71294 commented on a diff in the pull request:

    https://github.com/apache/carbondata/pull/2412#discussion_r199070321

    --- Diff: integration/presto/src/main/java/org/apache/carbondata/presto/readers/BooleanStreamReader.java ---
    @@ -17,91 +17,64 @@

     package org.apache.carbondata.presto.readers;

    -import java.io.IOException;
    -
     import org.apache.carbondata.core.cache.dictionary.Dictionary;
    +import org.apache.carbondata.core.metadata.datatype.DataType;
     import org.apache.carbondata.core.metadata.datatype.DataTypes;
    +import org.apache.carbondata.core.scan.result.vector.impl.CarbonColumnVectorImpl;
     import org.apache.carbondata.core.util.DataTypeUtil;

     import com.facebook.presto.spi.block.Block;
     import com.facebook.presto.spi.block.BlockBuilder;
     import com.facebook.presto.spi.block.BlockBuilderStatus;
    +import com.facebook.presto.spi.type.BooleanType;
     import com.facebook.presto.spi.type.Type;

    -public class BooleanStreamReader extends AbstractStreamReader {
    +public class BooleanStreamReader extends CarbonColumnVectorImpl
    +    implements PrestoVectorBlockBuilder {

    -  private boolean isDictionary;
    -  private Dictionary dictionary;
    +  protected int batchSize;

    -  public BooleanStreamReader() {
    +  protected Type type = BooleanType.BOOLEAN;

    -  }
    +  protected BlockBuilder builder;

    -  public BooleanStreamReader(boolean isDictionary, Dictionary dictionary) {
    -    this.isDictionary = isDictionary;
    +  private Dictionary dictionary;
    +
    +  public BooleanStreamReader(int batchSize, DataType dataType, Dictionary dictionary) {
    +    super(batchSize, dataType);
    +    this.batchSize = batchSize;
    +    this.builder = type.createBlockBuilder(new BlockBuilderStatus(), batchSize);
         this.dictionary = dictionary;
       }

    -  public Block readBlock(Type type) throws IOException {
    -    int numberOfRows = 0;
    -    BlockBuilder builder = null;
    -    if (isVectorReader) {
    -      numberOfRows = batchSize;
    -      builder = type.createBlockBuilder(new BlockBuilderStatus(), numberOfRows);
    -      if (columnVector != null) {
    -        if (isDictionary) {
    -          populateDictionaryVector(type, numberOfRows, builder);
    -        } else {
    -          if (columnVector.anyNullsSet()) {
    -            handleNullInVector(type, numberOfRows, builder);
    -          } else {
    -            populateVector(type, numberOfRows, builder);
    -          }
    -        }
    -      }
    -    } else {
    -      numberOfRows = streamData.length;
    -      builder = type.createBlockBuilder(new BlockBuilderStatus(), numberOfRows);
    -      for (int i = 0; i < numberOfRows; i++) {
    -        type.writeBoolean(builder, byteToBoolean(streamData[i]));
    -      }
    -    }
    -
    +  @Override public Block buildBlock() {
         return builder.build();
       }

    -  private void handleNullInVector(Type type, int numberOfRows, BlockBuilder builder) {
    -    for (int i = 0; i < numberOfRows; i++) {
    -      if (columnVector.isNullAt(i)) {
    -        builder.appendNull();
    -      } else {
    -        type.writeBoolean(builder, byteToBoolean(columnVector.getData(i)));
    -      }
    +  @Override public void setBatchSize(int batchSize) {
    +    this.batchSize = batchSize;
    +  }
    +
    +  @Override public void putInt(int rowId, int value) {
    +    Object data = DataTypeUtil
    +        .getDataBasedOnDataType(dictionary.getDictionaryValueForKey(value), DataTypes.BOOLEAN);
    +    if (data != null) {
    +      type.writeBoolean(builder, (boolean) data);
    +    } else {
    +      builder.appendNull();
         }
       }

    -  private void populateVector(Type type, int numberOfRows, BlockBuilder builder) {
    --- End diff --

    handled by putBoolean


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata pull request #2412: [CARBONDATA-2656] Presto vector stream reader...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user sv71294 commented on a diff in the pull request:

    https://github.com/apache/carbondata/pull/2412#discussion_r199070375

    --- Diff: integration/presto/src/main/java/org/apache/carbondata/presto/readers/BooleanStreamReader.java ---
    @@ -17,91 +17,64 @@

     package org.apache.carbondata.presto.readers;

    -import java.io.IOException;
    -
     import org.apache.carbondata.core.cache.dictionary.Dictionary;
    +import org.apache.carbondata.core.metadata.datatype.DataType;
     import org.apache.carbondata.core.metadata.datatype.DataTypes;
    +import org.apache.carbondata.core.scan.result.vector.impl.CarbonColumnVectorImpl;
     import org.apache.carbondata.core.util.DataTypeUtil;

     import com.facebook.presto.spi.block.Block;
     import com.facebook.presto.spi.block.BlockBuilder;
     import com.facebook.presto.spi.block.BlockBuilderStatus;
    +import com.facebook.presto.spi.type.BooleanType;
     import com.facebook.presto.spi.type.Type;

    -public class BooleanStreamReader extends AbstractStreamReader {
    +public class BooleanStreamReader extends CarbonColumnVectorImpl
    +    implements PrestoVectorBlockBuilder {

    -  private boolean isDictionary;
    -  private Dictionary dictionary;
    +  protected int batchSize;

    -  public BooleanStreamReader() {
    +  protected Type type = BooleanType.BOOLEAN;

    -  }
    +  protected BlockBuilder builder;

    -  public BooleanStreamReader(boolean isDictionary, Dictionary dictionary) {
    -    this.isDictionary = isDictionary;
    +  private Dictionary dictionary;
    +
    +  public BooleanStreamReader(int batchSize, DataType dataType, Dictionary dictionary) {
    +    super(batchSize, dataType);
    +    this.batchSize = batchSize;
    +    this.builder = type.createBlockBuilder(new BlockBuilderStatus(), batchSize);
         this.dictionary = dictionary;
       }

    -  public Block readBlock(Type type) throws IOException {
    -    int numberOfRows = 0;
    -    BlockBuilder builder = null;
    -    if (isVectorReader) {
    -      numberOfRows = batchSize;
    -      builder = type.createBlockBuilder(new BlockBuilderStatus(), numberOfRows);
    -      if (columnVector != null) {
    -        if (isDictionary) {
    -          populateDictionaryVector(type, numberOfRows, builder);
    -        } else {
    -          if (columnVector.anyNullsSet()) {
    -            handleNullInVector(type, numberOfRows, builder);
    -          } else {
    -            populateVector(type, numberOfRows, builder);
    -          }
    -        }
    -      }
    -    } else {
    -      numberOfRows = streamData.length;
    -      builder = type.createBlockBuilder(new BlockBuilderStatus(), numberOfRows);
    -      for (int i = 0; i < numberOfRows; i++) {
    -        type.writeBoolean(builder, byteToBoolean(streamData[i]));
    -      }
    -    }
    -
    +  @Override public Block buildBlock() {
         return builder.build();
       }

    -  private void handleNullInVector(Type type, int numberOfRows, BlockBuilder builder) {
    -    for (int i = 0; i < numberOfRows; i++) {
    -      if (columnVector.isNullAt(i)) {
    -        builder.appendNull();
    -      } else {
    -        type.writeBoolean(builder, byteToBoolean(columnVector.getData(i)));
    -      }
    +  @Override public void setBatchSize(int batchSize) {
    +    this.batchSize = batchSize;
    +  }
    +
    +  @Override public void putInt(int rowId, int value) {
    +    Object data = DataTypeUtil
    +        .getDataBasedOnDataType(dictionary.getDictionaryValueForKey(value), DataTypes.BOOLEAN);
    +    if (data != null) {
    +      type.writeBoolean(builder, (boolean) data);
    +    } else {
    +      builder.appendNull();
         }
       }

    -  private void populateVector(Type type, int numberOfRows, BlockBuilder builder) {
    -      for (int i = 0; i < numberOfRows; i++) {
    -        type.writeBoolean(builder, byteToBoolean(columnVector.getData(i)));
    -      }
    +  @Override public void putBoolean(int rowId, boolean value) {
    +    type.writeBoolean(builder, value);
       }

    -  private void populateDictionaryVector(Type type, int numberOfRows, BlockBuilder builder) {
    --- End diff --

    handled in putInt


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata pull request #2412: [CARBONDATA-2656] Presto vector stream reader...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user sv71294 commented on a diff in the pull request:

    https://github.com/apache/carbondata/pull/2412#discussion_r199070456

    --- Diff: integration/presto/src/main/java/org/apache/carbondata/presto/readers/BooleanStreamReader.java ---
    @@ -17,91 +17,64 @@

     package org.apache.carbondata.presto.readers;

    -import java.io.IOException;
    -
     import org.apache.carbondata.core.cache.dictionary.Dictionary;
    +import org.apache.carbondata.core.metadata.datatype.DataType;
     import org.apache.carbondata.core.metadata.datatype.DataTypes;
    +import org.apache.carbondata.core.scan.result.vector.impl.CarbonColumnVectorImpl;
     import org.apache.carbondata.core.util.DataTypeUtil;

     import com.facebook.presto.spi.block.Block;
     import com.facebook.presto.spi.block.BlockBuilder;
     import com.facebook.presto.spi.block.BlockBuilderStatus;
    +import com.facebook.presto.spi.type.BooleanType;
     import com.facebook.presto.spi.type.Type;

    -public class BooleanStreamReader extends AbstractStreamReader {
    +public class BooleanStreamReader extends CarbonColumnVectorImpl
    +    implements PrestoVectorBlockBuilder {

    -  private boolean isDictionary;
    -  private Dictionary dictionary;
    +  protected int batchSize;

    -  public BooleanStreamReader() {
    +  protected Type type = BooleanType.BOOLEAN;

    -  }
    +  protected BlockBuilder builder;

    -  public BooleanStreamReader(boolean isDictionary, Dictionary dictionary) {
    -    this.isDictionary = isDictionary;
    +  private Dictionary dictionary;
    +
    +  public BooleanStreamReader(int batchSize, DataType dataType, Dictionary dictionary) {
    +    super(batchSize, dataType);
    +    this.batchSize = batchSize;
    +    this.builder = type.createBlockBuilder(new BlockBuilderStatus(), batchSize);
         this.dictionary = dictionary;
       }

    -  public Block readBlock(Type type) throws IOException {
    --- End diff --

    builder is created with constructor and insertion function is done within the vector-filling process of CarbonColumnVectorImpl


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata pull request #2412: [CARBONDATA-2656] Presto vector stream reader...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user sv71294 commented on a diff in the pull request:

    https://github.com/apache/carbondata/pull/2412#discussion_r199083404

    --- Diff: integration/presto/src/main/java/org/apache/carbondata/presto/readers/DecimalSliceStreamReader.java ---
    @@ -45,80 +45,66 @@
     /**
      * Reader for DecimalValues
      */
    -public class DecimalSliceStreamReader  extends AbstractStreamReader {
    +public class DecimalSliceStreamReader extends CarbonColumnVectorImpl
    +    implements PrestoVectorBlockBuilder {

    +  private final char[] buffer = new char[100];
    +  protected int batchSize;
    +  protected Type type;
    +  protected BlockBuilder builder;
       private Dictionary dictionary;
    -  private boolean isDictionary;

    +  public DecimalSliceStreamReader(int batchSize,
    +      org.apache.carbondata.core.metadata.datatype.DecimalType dataType, Dictionary dictionary) {
    +    super(batchSize, dataType);
    +    this.type = DecimalType.createDecimalType(dataType.getPrecision(), dataType.getScale());
    --- End diff --

    here type is decided with the precision value by the presto whether shortDecimal or longDecimal


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user chenliang613 commented on the issue:

    https://github.com/apache/carbondata/pull/2412

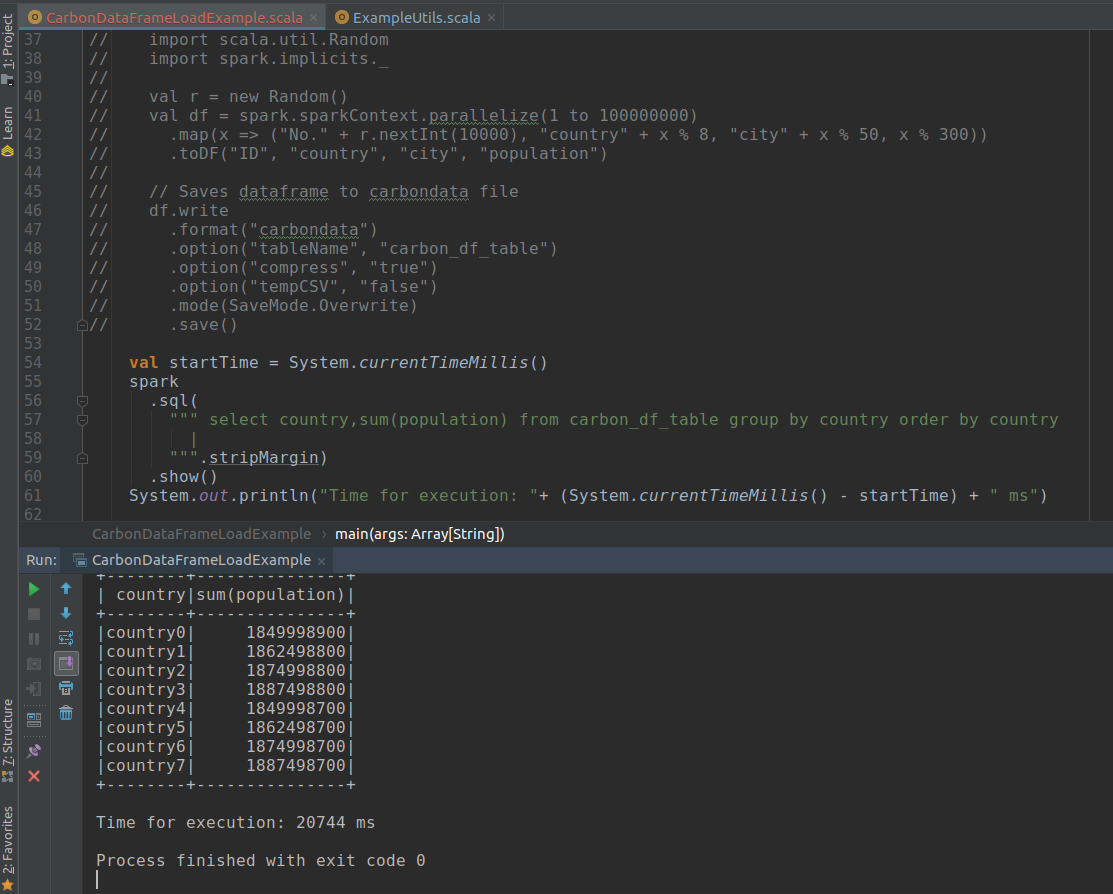

    Used the below script to build data:
    ```
    import scala.util.Random
    val r = new Random()
    val df = spark.sparkContext.parallelize(1 to 1000000000).map(x => ("No." + r.nextInt(10000), "country" + x % 8, "city" + x % 50, x % 300)).toDF("ID", "country", "city", "population")
    ```
    Two issues:
    1. On presto client, i ran two times as per the below script but get the different results:
    ```
    presto:default> select country,sum(population) from carbon_table group by country;
     country  |    _col1
    ----------+-------------
     country4 | 18508531250
     country2 | 18758431703
     country0 | 18508717865
     country7 | 18884021774
     country1 | 18633160595
     country5 | 18633480022
     country6 | 18757895175
     country3 | 18883151243
    (8 rows)

    Query 20180630_041406_00004_crn9q, FINISHED, 1 node
    Splits: 65 total, 65 done (100.00%)
    1:01 [1000M rows, 8.4GB] [16.5M rows/s, 142MB/s]

    presto:default> select country,sum(population) from carbon_table group by country;
     country  |    _col1
    ----------+-------------
     country4 | 18500014852
     country0 | 18499993972
     country5 | 18624989449
     country1 | 18625008398
     country3 | 18874966666
     country6 | 18749995166
     country7 | 18874992446
     country2 | 18749999687
    (8 rows)

    Query 20180630_041510_00005_crn9q, FINISHED, 1 node
    Splits: 65 total, 65 done (100.00%)
    0:59 [1000M rows, 8.4GB] [17M rows/s, 146MB/s]
    ```
    2. For aggregation scenarios with 1 billion row data, presto performance is much lower than spark, as below: (presto is around 1 mins, spark is around 33 seconds)
    ```
    scala> benchmark { carbon.sql("select country,sum(population) from carbon_table group by country").show}
    +--------+---------------+
    | country|sum(population)|
    +--------+---------------+
    |country4|    18499998700|
    |country1|    18624998800|
    |country3|    18874998800|
    |country7|    18874998700|
    |country2|    18749998800|
    |country6|    18749998700|
    |country5|    18624998700|
    |country0|    18499998900|
    +--------+---------------+

    33849.999703ms
    ```


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user sv71294 commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Hi Liang,
    I tried to reproduce the same issue, with provided script, I created the table and executed the SQL.
    I am getting the same result with SPARK  as well as with PRESTO (within almost same time), please check the attached screenshot.
    ![presto](https://user-images.githubusercontent.com/3933895/42147137-f8d286b6-7de9-11e8-8865-e5ce65b91a09.png)
    ![spark](https://user-images.githubusercontent.com/3933895/42147138-f913de22-7de9-11e8-9c31-16dda0becfae.png)




---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user chenliang613 commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    @sv71294
    After setting the below two parameters, my side's test result  be same. but the performance need to check.
    enable.unsafe.columnpage=false
    enable.unsafe.sort=false


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Failed with Spark 2.2.1, Please check CI http://88.99.58.216:8080/job/ApacheCarbonPRBuilder/5787/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user sv71294 commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    retest this please


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Success with Spark 2.2.1, Please check CI http://88.99.58.216:8080/job/ApacheCarbonPRBuilder/5788/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Failed  with Spark 2.1.0, Please check CI http://136.243.101.176:8080/job/ApacheCarbonPRBuilder1/7011/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user ravipesala commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    SDV Build Fail , Please check CI http://144.76.159.231:8080/job/ApacheSDVTests/5760/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user sv71294 commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    retest this please


---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user ravipesala commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    SDV Build Fail , Please check CI http://144.76.159.231:8080/job/ApacheSDVTests/5761/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user ravipesala commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    SDV Build Success , Please check CI http://144.76.159.231:8080/job/ApacheSDVTests/5763/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Success with Spark 2.1.0, Please check CI http://136.243.101.176:8080/job/ApacheCarbonPRBuilder1/7017/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Success with Spark 2.2.1, Please check CI http://88.99.58.216:8080/job/ApacheCarbonPRBuilder/5797/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Success with Spark 2.1.0, Please check CI http://136.243.101.176:8080/job/ApacheCarbonPRBuilder1/7106/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user CarbonDataQA commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    Build Success with Spark 2.2.1, Please check CI http://88.99.58.216:8080/job/ApacheCarbonPRBuilder/5882/



---
Reply | Threaded
Open this post in threaded view
|

[GitHub] carbondata issue #2412: [CARBONDATA-2656] Presto vector stream readers perfo...

qiuchenjian-2
In reply to this post by qiuchenjian-2
Github user chenliang613 commented on the issue:

    https://github.com/apache/carbondata/pull/2412

    LGTM, verified, this pr can improve the performance by 20%.  Thanks for the contribution.


---
1234
